MSE Wall Drainage Systems (Panel & Block)
Maintainable drainage components for MSE panels, segmental retaining wall blocks, reinforced backfill systems, and mechanically stabilized earth walls where hydrostatic pressure relief, soil retention, and long-term service access matter.
JET Filter MSE Retaining Wall Drainage systems are part of the company’s broader Materials page and are designed to relieve hydrostatic pressure, support soil retention, and preserve maintainable weep hole access in mechanically stabilized earth wall systems.
MSE panels and segmental blocks are commonly used in retaining wall applications where groundwater, runoff, and saturated reinforced backfill can create pressure behind the wall face. Proper drainage helps reduce loading, protect wall alignment, and support long-term wall performance.
Table of Contents
Use these quick links to jump to the major block, and MSE panel drainage topics on this page.
- Why MSE Wall Drainage Is Critical
- Maintainable Weep Hole Systems for MSE Wall Weep Holes
- Key Benefits of JET Filter MSE Wall Drainage
- Mirafi FW Series Geotextile Integration
- MSE Panel and Block Applications
- Controlled Hydrostatic Pressure Relief for MSE Walls
- Recommended JET Filter Products for MSE Wall Drainage
- Protect MSE Walls from Drainage-Related Repairs
- MSE Retaining Wall Drainage Systems from JET Filter
- MSE Wall Drainage Project Examples
Why MSE Wall Drainage Is Critical
MSE panels and segmental blocks need reliable drainage to manage groundwater, runoff, and saturated reinforced backfill behind the wall face. When hydrostatic pressure is not relieved, it can increase lateral loading, affect wall alignment, stress panel joints or block connections, and reduce long-term retaining wall performance.
- Wall face movement from trapped groundwater pressure and saturated reinforced backfill
- Panel or block displacement caused by elevated lateral loading behind the wall face
- Joint and connection stress where water pressure affects panels, blocks, or facing elements
- Backfill migration when drainage paths allow soil loss or become ineffective
- Reinforcement zone saturation that can affect long-term MSE wall performance
- Reduced service life when drainage becomes clogged, hidden, or inaccessible
Maintainable Weep Hole Systems for MSE Wall Weep Holes

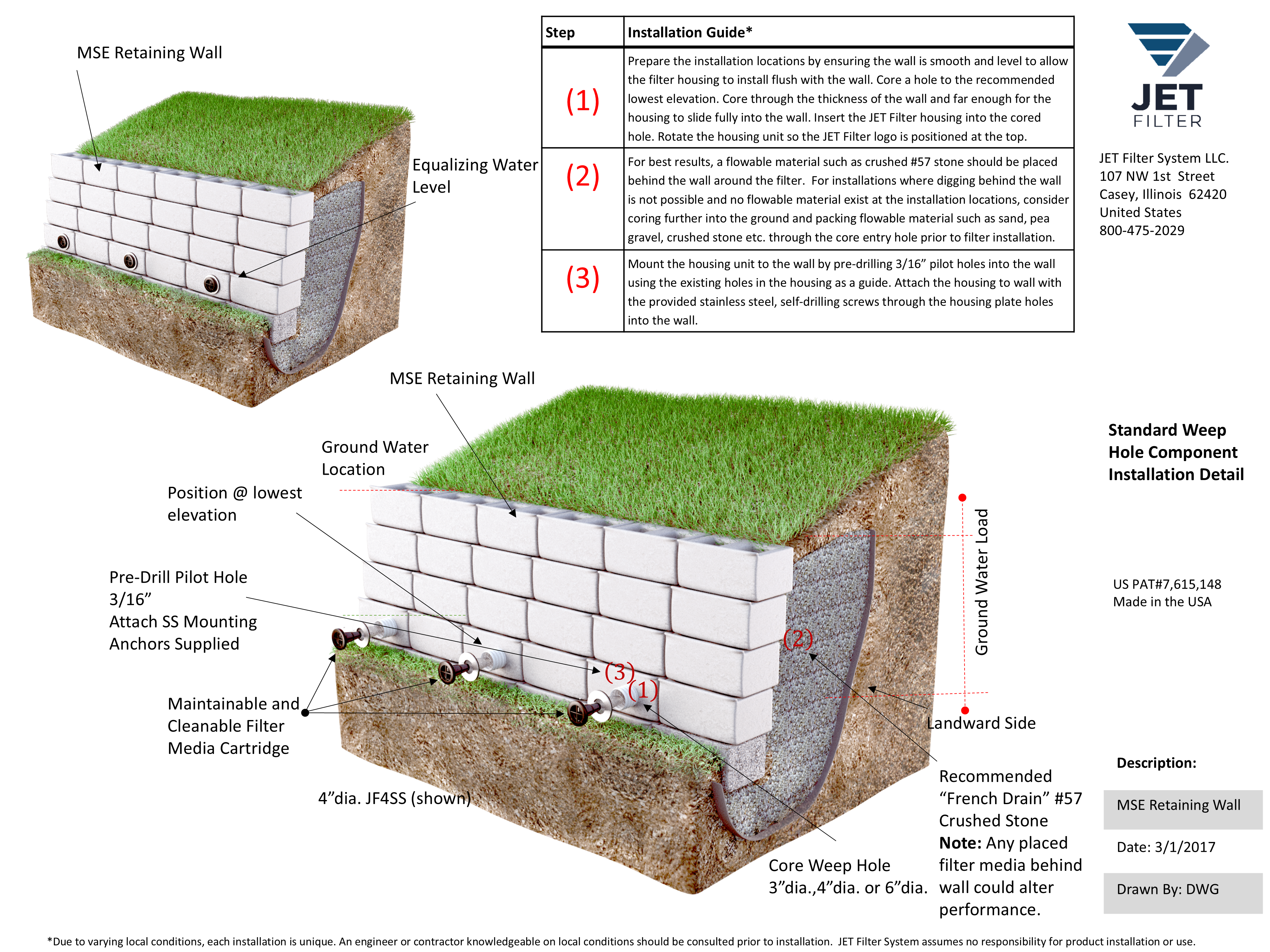

The JET Filter Maintainable Weep Hole Filter System is designed for MSE wall drainage applications requiring hydrostatic pressure relief, soil retention, and long-term service access behind panels, blocks, and reinforced backfill systems.
Controlled Wall Drainage
JET Filter systems help relieve trapped groundwater pressure behind MSE panels and blocks while supporting soil retention and consistent drainage performance.
Serviceable Drainage Access
The maintainable configuration allows owners and contractors to inspect and service drainage components without removing large wall sections or disturbing reinforced backfill.
Key Benefits of JET Filter MSE Wall Drainage
JET Filter systems help MSE panels, segmental blocks, and reinforced retaining wall systems relieve hydrostatic pressure, support soil retention, and preserve maintainable drainage access behind the wall face.
Maintainable Drainage Access
JET Filter components are designed for future inspection and servicing, helping owners maintain drainage performance without relying on hidden or inaccessible drainage paths.
Hydrostatic Pressure Relief
Groundwater, runoff, and saturated reinforced backfill can create pressure behind MSE wall faces. JET Filter systems provide controlled drainage to help reduce loading.
Soil Retention Support
The filter system helps relieve water pressure while supporting soil retention behind MSE panels and blocks, reducing the risk of uncontrolled backfill migration.
Reinforced Backfill Protection
JET Filter systems support MSE retaining walls by helping manage water behind the wall face while preserving long-term drainage access in reinforced backfill zones.
Mirafi FW Series Geotextile Integration
JET Filter MSE Wall Drainage systems incorporate Mirafi FW Series woven geotextile fabric to provide filtration, soil retention, and controlled drainage behind MSE panels, segmental blocks, and reinforced backfill zones.
- Helps prevent soil migration behind MSE panels, blocks, and retaining wall faces
- Reduces clogging potential at the weep hole opening and drainage assembly
- Maintains water flow through the filter system in saturated reinforced backfill conditions
- Supports long-term drainage performance in mechanically stabilized earth wall applications
- Combines drainage and filtration to help relieve pressure while retaining surrounding soils
MSE Panel and Block Applications
JET Filter systems support MSE wall drainage applications where groundwater, runoff, and saturated reinforced backfill require controlled pressure relief, soil retention, and maintainable drainage access behind the wall face.
MSE Panel Walls
Precast MSE panel walls require drainage that manages water pressure behind the wall face without allowing uncontrolled backfill migration. JET Filter systems help support soil retention and long-term service access.
Segmental Block Walls
Segmental retaining wall blocks can be exposed to runoff, groundwater, and saturated backfill conditions. Maintainable JET Filter drainage helps relieve pressure while preserving access for future inspection and service.
Transportation Retaining Walls
MSE retaining walls used along roads, bridges, ramps, and transportation corridors need dependable drainage to manage runoff and groundwater behind the wall face. JET Filter systems provide maintainable pressure relief.
Reinforced Backfill Zones
MSE wall performance depends on managing water within and behind reinforced backfill zones. JET Filter components provide controlled drainage to help reduce pressure and support stable wall performance.
Controlled Hydrostatic Pressure Relief for MSE Walls
Hydrostatic pressure is a major design concern for MSE panels, segmental blocks, and reinforced retaining wall systems. When groundwater, runoff, or saturated backfill collects behind the wall face, pressure can increase lateral loading, affect alignment, and reduce long-term wall performance if drainage is inadequate.
System Function
JET Filter systems provide controlled drainage through MSE wall faces to help relieve trapped water pressure while supporting soil retention behind panels, blocks, and reinforced backfill zones.
Maintenance Value
Maintainable drainage components allow future inspection and servicing, helping owners address drainage issues before pressure buildup affects wall alignment, facing stability, or long-term performance.
Recommended JET Filter Products for MSE Wall Drainage
JET Filter offers maintainable drainage configurations for MSE panels, segmental blocks, and reinforced retaining wall systems where controlled pressure relief, soil retention, and long-term service access are required.
3″ Diameter Open End Filter
Open-end 3″ stainless steel JET Filter for MSE panels and segmental block walls requiring maintainable drainage and soil retention.
View Product4″ Diameter Open End JET Filter
Open-end 4″ stainless steel JET Filter for MSE wall drainage applications requiring increased flow capacity and long-term service access.
View Product6″ Diameter Open End JET Filter
Open-end 6″ stainless steel JET Filter for larger MSE retaining walls and reinforced backfill systems requiring high-capacity drainage.
View Product3″ Diameter Closed End JET Filter
Closed-end 3″ stainless steel JET Filter for MSE wall applications requiring controlled discharge, maintainable access, and soil retention.
View Product4″ Diameter Closed End JET Filter
Closed-end 4″ stainless steel JET Filter for MSE panels and blocks requiring controlled water relief and long-term drainage performance.
View Product6″ Diameter Closed End JET Filter
Closed-end 6″ stainless steel JET Filter for demanding MSE wall drainage applications requiring high-capacity pressure relief and controlled discharge.
View ProductProtect MSE Walls from Drainage-Related Repairs
Drainage failures behind MSE panels and segmental block walls can lead to hydrostatic pressure buildup, wall face movement, backfill migration, and costly retaining wall repairs. Maintainable JET Filter drainage helps reduce these risks by preserving serviceable weep hole access over time.
- Reduce hydrostatic pressure behind MSE wall faces
- Help limit panel or block movement caused by trapped water pressure
- Support soil retention behind reinforced retaining wall systems
- Maintain drainage access for future inspection and service
- Limit excavation-related repair risk in reinforced backfill zones
JET Filter MSE Wall Drainage Systems give owners, contractors, and engineers a maintainable drainage solution for MSE panels, segmental blocks, transportation retaining walls, and reinforced backfill applications.
MSE Retaining Wall Drainage Systems from JET Filter
JET Filter provides maintainable drainage solutions for MSE panels, segmental block retaining walls, reinforced backfill systems, and mechanically stabilized earth wall applications. Our systems help relieve hydrostatic pressure, support soil retention, and preserve long-term drainage access behind the wall face.
MSE Wall Drainage Project Examples
Explore MSE panel, segmental block, and reinforced retaining wall applications where JET Filter drainage systems help relieve hydrostatic pressure, support soil retention, and preserve long-term service access behind the wall face.
Restaurant Retaining Wall Drainage Solution | Raising Cane’s Buford, GA
As part of the restaurant’s site development, the wall’s location and elevation required proactive drainage to prevent: pressure buildup behind the wall, water saturation of surrounding landscape soil, long-term erosion or cracking of concrete facing.
View Case Study
Concrete Retaining Wall Drainage | NYC DDC Staten Island Upgrade
The New York City Department of Design and Construction (NYC DDC) upgraded the drainage system behind concrete retaining walls along Huguenot Avenue and Swaim Avenue in Staten Island to reduce hydrostatic pressure and protect critical infrastructure.
View Case Study
Deland Residential Retaining Wall Drainage | Concrete Barrier Upgrade
At 1251 N. Stone Street in Deland, Florida, the SMA Men’s Residential facility partnered with A.M. Weigel Construction to improve water drainage performance behind new concrete retaining walls. The project included installing 50 JET Filter maintainable weep hole assemblies.
View Case Study
WWTP Retaining Wall Drainage | Durham NH Infrastructure Upgrade
The Durham Wastewater Treatment Plant (WWTP) in Strafford County, New Hampshire underwent a critical drainage system upgrade to improve stormwater management and long-term stability behind reinforced concrete retaining walls. The project addressed rising concerns about hydrostatic pressure buildup and erosion at this vital public utility facility.
View Case Study
KETV News Station Drainage Upgrade | Omaha Precast Retaining Wall Drainage
The KETV Channel 7 News Station in Omaha, Nebraska, underwent a targeted drainage improvement project as part of a larger transformation of the historic Burlington Station into a state-of-the-art media facility. To protect its precast retaining walls and concrete barriers, JET Filter System provided maintainable weep hole drains as the hydrostatic pressure relief system to ensure long-term stability.
View Case Study
Fort Sill Concrete Retaining Wall Drainage | Weep Hole Extension Project
The Fort Sill drainage project located at the Fort Sill Substation in Lawton, Oklahoma, required drainage improvements that were made to the reinforced concrete retaining walls using JET Filter System’s maintainable weep hole technology.
View Case Study
