Composite Sheet Pile Drainage Systems for Long-Term Wall Stability
Engineered drainage components for composite sheet pile retaining walls, bulkheads, transportation structures, marine infrastructure, and waterway applications where hydrostatic pressure relief and long-term maintainability matter.
JET Filter Composite Sheet Pile Drainage Systems are part of the company’s broader Materials page and are designed to relieve hydrostatic pressure, improve wall performance, and extend the service life of composite sheet pile retaining structures.
Composite sheet pile walls are commonly used in waterfront, canal, marina, and retaining wall environments where corrosion resistance and long-term durability are important. When groundwater, runoff, tidal fluctuation, and saturated backfill collect behind the wall, proper drainage helps relieve hydrostatic pressure and support stable wall performance.
Table of Contents
Use these quick links to jump to the major composite sheet pile drainage topics on this page.
- Why Composite Sheet Pile Wall Drainage Is Critical
- Maintainable Weep Hole Systems for Composite Sheet Piling
- Key Benefits of JET Filter Composite Sheet Pile Weep Holes
- Mirafi FW Series Geotextile Integration
- Composite Sheet Piling Applications
- Hydrostatic Pressure Relief for Composite Sheet Piling
- Recommended JET Filter Products for Composite Sheet Piling Drainage
- Protect Composite Sheet Pile Walls from Drainage-Related Repairs
- Composite Sheet Pile Drainage Systems from JET Filter
- Composite Sheet Piling Drainage Project Examples
Why Composite Sheet Pile Wall Drainage Is Critical
Composite sheet pile retaining walls need reliable drainage to manage groundwater, runoff, and saturated backfill behind the wall. When water pressure is not controlled, it can increase lateral loading, affect wall alignment, and place added stress on interlocks, anchors, and surrounding backfill conditions.
- Wall movement from saturated backfill and trapped groundwater pressure
- Panel deflection caused by elevated lateral loading behind composite sheet piling
- Interlock stress from unmanaged hydraulic pressure and soil movement
- Failed interlocks and deterioration at critical connection points
- Anchor and tie-back strain from persistent water pressure behind the wall
- Reduced service life when drainage becomes clogged, hidden, or inaccessible

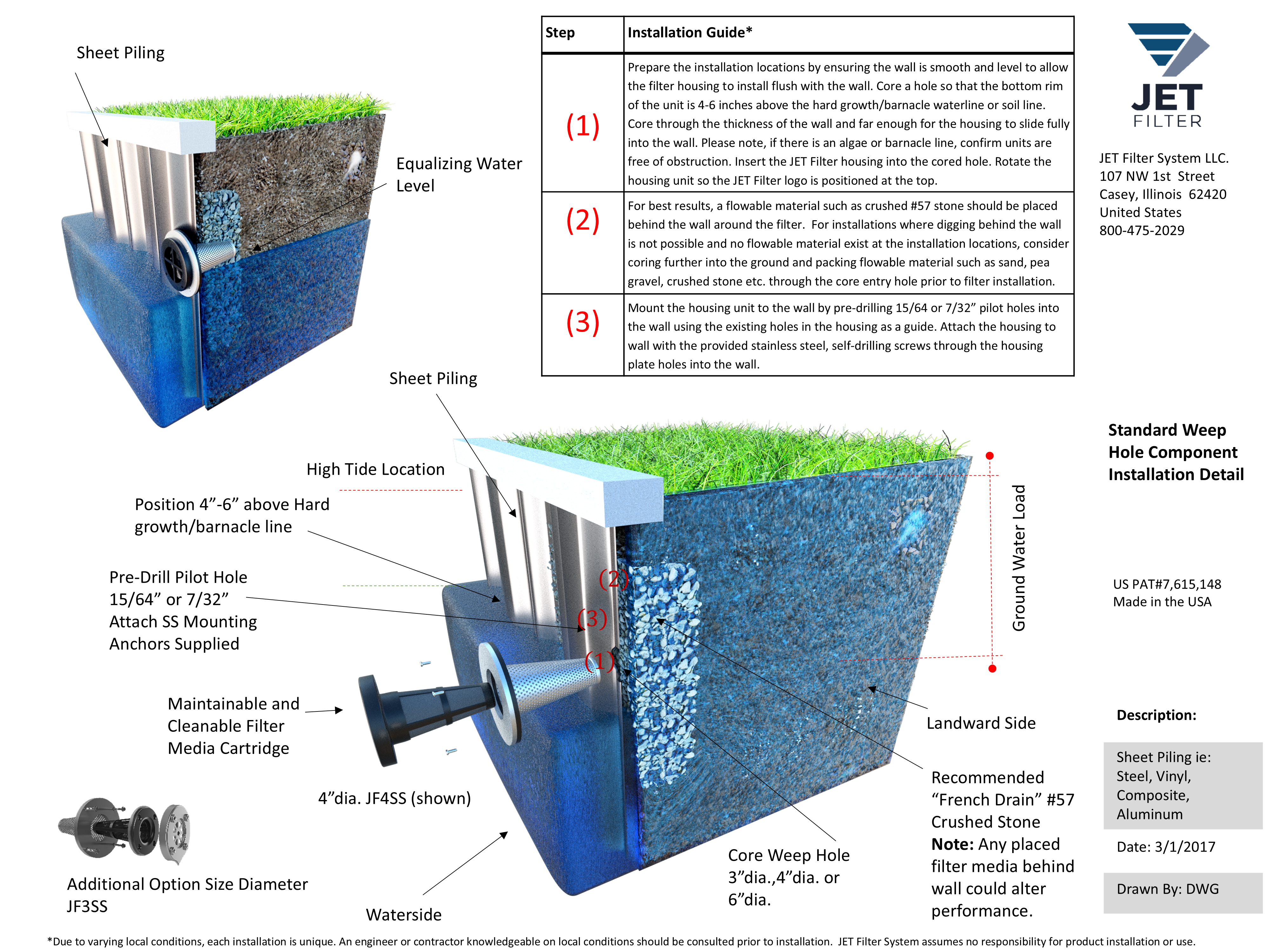

Maintainable Weep Hole Systems for Composite Sheet Piling
The JET Filter Maintainable Weep Hole Filter System is designed for composite sheet pile drainage applications requiring controlled water relief, soil retention, and long-term serviceability.
Composite sheet pile walls are often used in waterfront, marina, canal, and retaining wall environments where long-term durability matters. JET Filter components help provide drainage access that can be inspected and serviced over time without major wall disruption.
Controlled Drainage
JET Filter systems help relieve trapped groundwater pressure behind composite sheet pile walls while supporting soil retention and consistent drainage performance.
Service Access
The maintainable configuration allows owners and contractors to inspect and service drainage components without removing large wall sections or excavating behind the structure.
Key Benefits of JET Filter Composite Sheet Pile Weep Holes
JET Filter systems provide maintainable drainage for composite sheet pile walls in marine, waterfront, canal, and retaining wall applications by helping relieve hydrostatic pressure, support soil retention, and preserve long-term service access.
Corrosion-Resistant Drainage
Composite sheet pile walls are often selected for corrosion resistance. JET Filter systems complement these installations with maintainable drainage designed for long-term waterfront and retaining wall performance.
Hydrostatic Pressure Control
Groundwater and saturated backfill can create pressure behind composite sheet pile walls. JET Filter systems provide controlled drainage to help reduce loading and support wall stability.
Maintainable Access
Unlike buried or inaccessible drainage paths, JET Filter components are designed for future inspection and servicing to help preserve drainage performance over the life of the structure.
Project Versatility
Suitable for seawalls, bulkheads, canals, marinas, and retaining walls, JET Filter systems support composite sheet pile projects across marine, transportation, industrial, and waterway environments.
Mirafi FW Series Geotextile Integration
JET Filter Composite Sheet Pile Drainage Systems incorporate Mirafi FW Series woven geotextile fabric to provide filtration and drainage control.
- Prevents soil migration behind the retaining wall
- Reduces clogging potential at the weep hole opening
- Maintains water flow through the drainage assembly
- Improves long-term drainage performance in saturated backfill conditions
- Supports wall stability by combining drainage and filtration
Composite Sheet Piling Applications
JET Filter systems support composite sheet piling applications where groundwater, runoff, tidal fluctuation, and saturated backfill conditions require controlled drainage and long-term service access.
Seawalls
Composite sheet piling seawalls face tidal action, runoff, and saturated soils. JET Filter systems provide controlled drainage to relieve hydrostatic pressure and support long-term wall performance.
Bulkheads
Composite sheet pile bulkheads along canals, marinas, and waterways need reliable drainage to manage groundwater and hydraulic loading while maintaining soil retention behind the wall.
Retaining Walls
Composite sheet pile retaining walls support backfill exposed to stormwater, runoff, and groundwater buildup. Proper drainage helps reduce hydrostatic pressure and preserve wall stability.
Hydrostatic Pressure Relief for Composite Sheet Piling
Hydrostatic pressure is a major design concern for composite sheet piling used in seawalls, bulkheads, canals, marinas, and waterfront retaining structures. When groundwater, runoff, or tidal fluctuation collects behind the wall, pressure can increase lateral loading and affect long-term wall performance if drainage is inadequate.
System Function
JET Filter systems provide controlled drainage through the composite sheet pile wall to help relieve trapped water pressure while supporting soil retention behind the structure.
Maintenance Value
Maintainable drainage components allow future inspection and servicing, helping owners address drainage issues before pressure buildup affects wall performance.
Recommended JET Filter Products for Composite Sheet Piling Drainage
JET Filter offers multiple drainage configurations for composite sheet pile applications depending on project requirements and drainage capacity needs.
2.5″ Diameter Open End ABS Filter
Open-end ABS filter designed for composite sheet piling applications requiring maintainable drainage and dependable flow capacity.
View Product3″ Diameter Open End JET Filter
Open-end stainless steel JET Filter designed for composite sheet pile drainage applications requiring maintainable flow and soil retention.
View Product3″ Diameter Closed End JET Filter
Closed-end stainless steel JET Filter designed for composite sheet pile applications requiring increased drainage capacity and controlled discharge.
View ProductProtect Composite Sheet Pile Walls from Drainage-Related Repairs
Drainage failures behind composite sheet pile retaining walls can result in major structural repairs, wall reconstruction, and significant project costs.
- Reduce future repair costs
- Improve infrastructure lifespan
- Minimize wall maintenance
- Protect structural integrity
- Avoid excavation-related repairs
JET Filter Composite Sheet Pile Drainage Systems provide infrastructure owners, contractors, and engineers with a long-term drainage solution designed for demanding retaining wall environments.
Composite Sheet Pile Drainage Systems from JET Filter
JET Filter continues to provide engineered drainage solutions for retaining wall infrastructure across transportation, marine, industrial, and water management applications through its complete range of maintainable weep hole systems.
Composite Sheet Piling Drainage Project Examples
Explore project applications where JET Filter drainage systems support retaining wall performance, waterfront stability, and long-term maintainability.
Sebastian Yacht Club
Composite sheet pile drainage installation supporting a waterfront marina structure in Sebastian, Florida. JET Filter components provide maintainable drainage to help relieve hydrostatic pressure behind the wall.
Contractor: Ferreira Construction
Location: Sebastian, Florida, USA
Residential Property
Composite sheet piling used for a residential waterfront bulkhead in Merritt Island, Florida. JET Filter drainage helps manage groundwater buildup and support long-term wall performance.
Location: Merritt Island, Florida, USA
Residential Property
Composite sheet pile wall application for a residential waterfront property in St. Augustine, Florida. Maintainable JET Filter drainage helps reduce pressure behind the wall and preserve shoreline stability.
Location: St. Augustine, Florida, USA
